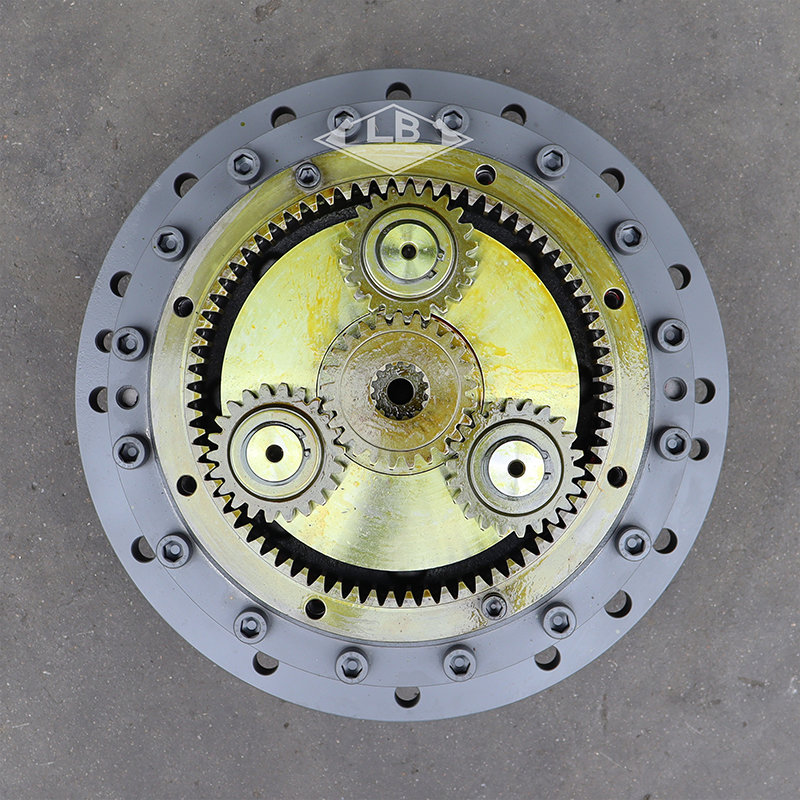

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

Jiangmen Liba euipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

  • 1
  • 2
  • 3

Contact Now

VOLVO EC240 swing reduction gearbox VOE14503783 VOE14542163 VOE7118-34100 EC240 swing gearbox

PRODUCT PARAMETERS
Part name EC240 swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14503783 VOE14542163 VOE7118-34100
NO.1 sun gear spline teeth 14 splines
Swing pinion shaft teeth 15T
Item condition New
Logo LB
Gross weight 298KG
MOQ 1 pc

Product Descriptio

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction GearboxVOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

Parts on group Swing gearbox:

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

Pos. Part No Qty Parts name Comments
VOE14542163 [1] Gearbox
1. VOE14518703 [1] Carrier
2. SA1036-00530 [1] Crankshaft
3. SA1036-00550 [3] Planetary Gear
4. SA1036-00610 [3] Pin
5. SA7118-34231 [3] Pin
6. SA7118-34260 [3] Bushing
7. SA1036-00620 [6] Washer
8. SA9325-10012 [3] Spring pin
9. VOE14640028 [1] Bearing
10. SA1036-00710 [1] Bearing
11. SA1036-00630 [1] Knob
12. VOE14558605 [1] Seal SER NO 10001-13402 SER NO 80001-81085
VOE14558605 [1] Seal SER NO 13403- SER NO 81086-
13. SA7118-01560 [1] Plate
14. SA7114-12590 [4] Screw
15. VOE14504206 [1] Gear
16. SA1036-00700 [4] Pin
17. SA7118-34340 [1] Casing
18. VOE14510986 [1] Sun gear
19. VOE984369 [16] Hex. socket screw
20. VOE14550896 [1] Carrier
21. SA7118-34410 [1] Carrier
22. SA7118-34420 [3] Planetary Gear
23. VOE14550897 [3] Pin
24. SA7118-34440 [3] Needle bearing
25. SA7118-34450 [3] Washer
26. SA7118-34460 [3] Washer
27. SA9541-01085 [3] Retaining ring
28. SA9325-08010 [3] Spring pin
29. SA7118-34470 [1] Gear
30. SA7118-34480 [1] Washer
31. SA7118-34490 [1] Sun gear
32. VOE984354 [8] Hex. socket screw
33. VOE14514384 [1] Pipe SER NO 10001-12701 SER NO 30001-30199
VOE14540597 [1] Pipe SER NO 12702- SER NO 30200-
34. SA1012-01500 [1] Valve
35. [1] Casing
36. SA9541-01085 [1] Retaining ring
37. VOE949329 [1] Gasket
100. VOE14526215 [1] Overhaul kit
200. VOE14627726 [1] Housing inc 15,16,35
